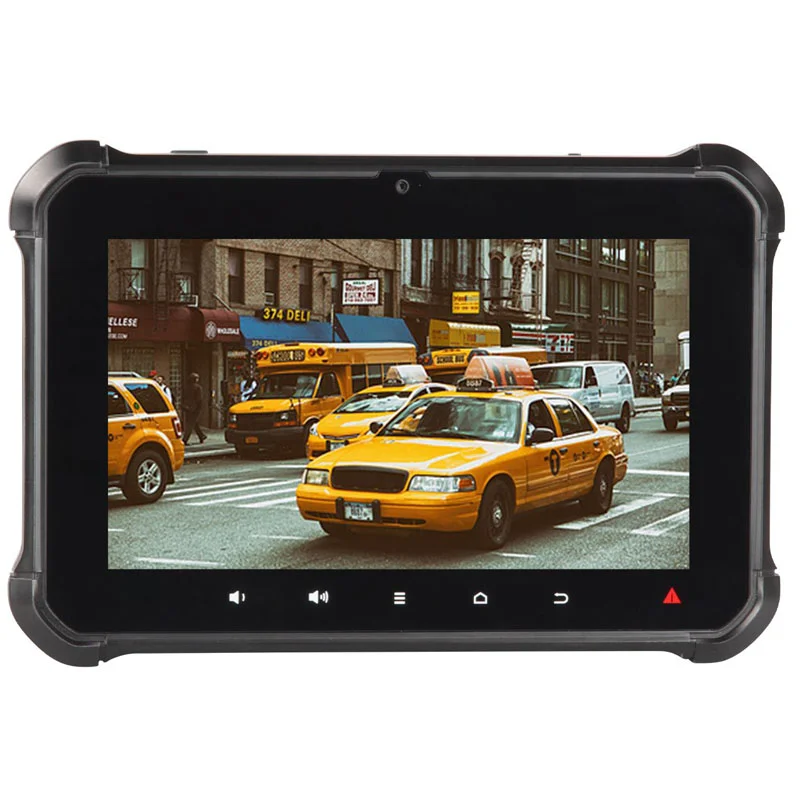

S8 Rugged Tablet – The Ultimate 8-inch Industrial-Grade Android Tablet for Harsh Environments
The S8 rugged tablet from Waysion is an 8-inch powerhouse designed for industrial use in harsh environments. With its IP65 rating, robust construction, and advanced connectivity options, it’s built to withstand the toughest conditions while delivering reliable performance.
Key Features
- Rugged Design: The S8 features an IP65-rated enclosure, ensuring it’s dust-tight and protected against water jets.
- Powerful Processor: Equipped with a Rockchip RK3288 Quad-core ARM Cortex-A17 processor, running at up to 1.8GHz.
- Android 7.1 OS: The tablet runs on Android 7.1 Nougat, offering a user-friendly interface and efficient performance.
- Advanced Graphics: Integrated 2D/3D Mali-T764 GPU, up to 600MHz, for smooth graphics processing.
- Versatile Connectivity: Built-in 4G cellular, RJ45 Ethernet LAN (Gigabits optional), NFC, and multiple I/O interfaces.
Cutting-Edge Connectivity
The S8 offers cutting-edge connectivity with 4G LTE/3G Cellular, Wi-Fi/Bluetooth, and Gigabit Ethernet for data communication and NFC for identification. It supports the latest Wi-Fi standards and Bluetooth for creating a secured Personal Area Network.
Onboard I/O Support with Docking
The S8 provides multiple connections for external equipment, including USB, OTG, RS232, RS422 (RS485 optional), and Docking extension (optional). It supports TF card (up to 128GB), having Combo Audio Jack and POGO PIN.
Support Multi-Functional Modules Customization
The S8‘s high-performance processors and multiple interfaces extend its capabilities, supporting customer software, extended hardware, and easy mounting.
ELD Made Easy
With SAE J1939/OBD-II interfaces (optional), the S8 is automatically compliant with multiple HOS rules, making it ideal for fleet management and logistics.
All-round Ruggedness
The S8 features TPU material corner drop protection for all-around device protection. It’s compliant with IP65 rating for dustproof and waterproof, and anti-vibration and shock resistance.
Specifications
| Feature | Description |
|---|---|
| Model | S8 |
| Processor | Rockchip RK3288W Quad-core ARM Cortex-A17, 1.8GHz |
| GPU | Integrated 2D/3D Mali-T764 GPU, up to 600MHz |
| RAM | 2GB LPDDR3 (4GB optional) |
| ROM | 8GB eMMC (32GB optional) |
| OS | Android 7.1/Linux (optional, Ubuntu 18.04) |
| Display | 8-inch TFT-LCD, LED backlight |
| Resolution | 1024 × 600 |
| Brightness | 500 cd/m2 |
| Touch Panel | G+G multi-touch capacitive touch panel |
| Wireless | Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4GHz & 5GHz, Bluetooth Ver 4.0, 4G optional (LTE, UMTS, GSM) |
| Positioning | Integrated GPS+GLONASS+BEIDOU (optional) |
| Camera | 2.0MP CMOS (front), 5.0MP CMOS (back) |
| Battery | 3.7V 3600mAh, Lithium-Polymer (up to 3 hours) |
| Environment | Operating Temp: -20°C~70°C (w/o battery), -10°C~50°C (w/ battery) |
Frequently Asked Questions
- Q: What is the battery life of the S8?
A: The S8 is equipped with a 3.7V 3600mAh lithium-polymer battery, providing up to 3 hours of battery life. - Q: Is the S8 waterproof and dustproof?
A: Yes, the S8 has an IP65 rating, making it dust-tight and protected against water jets. - Q: What kind of storage capacity does the S8 offer?
A: It comes with 2GB LPDDR3 RAM and 8GB eMMC ROM, with options for 4GB RAM and 32GB ROM. - Q: Does the S8 support 4G connectivity?
A: Yes, the S8 supports 4G LTE/3G Cellular, ensuring fast and reliable connectivity in the field. - Q: What kind of operating temperature range can the S8 withstand?
A: The S8 can operate in temperatures ranging from -20°C to 70°C without a battery and -10°C to 50°C with a battery.
Application Range

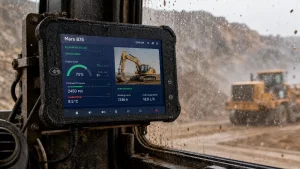

The S8 rugged tablet is designed to meet the needs of various industries. With its customizable modules and accessories, it can be tailored to fit applications in transportation, agriculture, fleet management, mining, and more.
Technical Support and Customization
Waysion offers comprehensive technical support, including pre-sales consultation, scheme design, installation and debugging, and after-sales maintenance. We provide full customization services to ensure our products seamlessly integrate and optimize your working system. Our team of professional engineers is always ready to assist with any technical issues and ensure smooth operations. Regular software updates and upgrades keep your equipment at the cutting edge.
