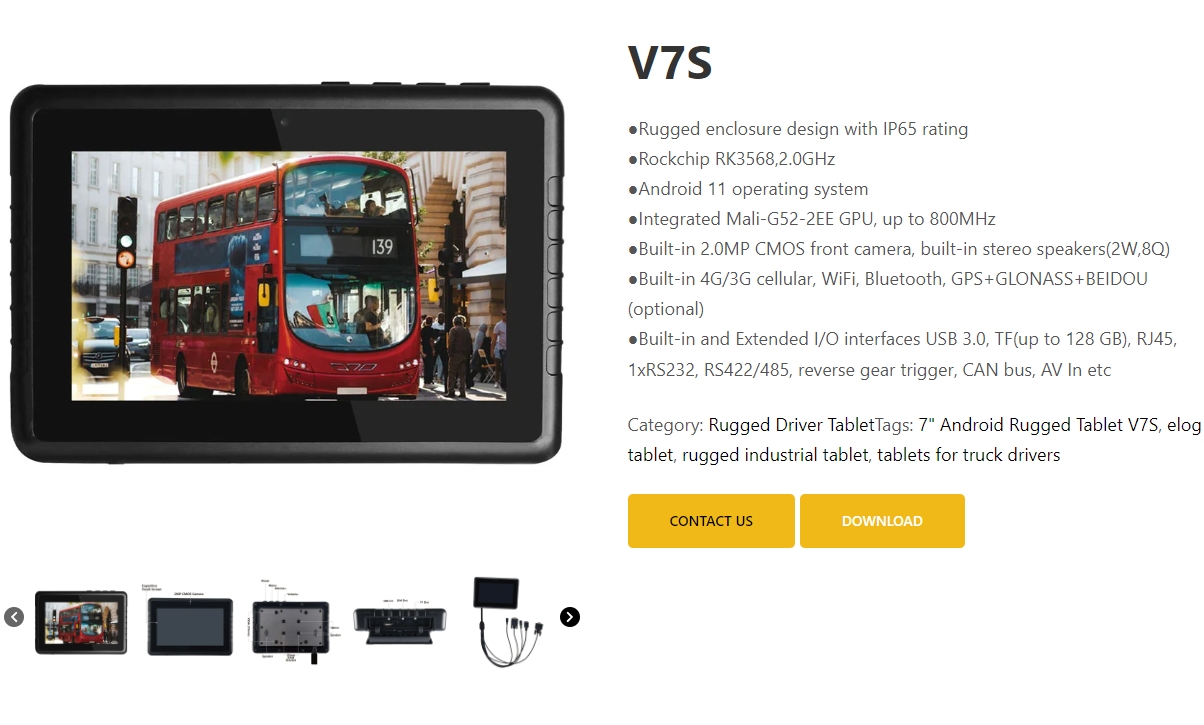

V7S 7-Inch Android Rugged Tablet – The Ultimate Choice for Field Operations
Are you searching for a robust and reliable rugged tablet that can withstand the rigors of your specific industry? Look no further than the V7S, a powerful 7-inch Android tablet designed for durability and functionality. This tablet is built to meet the demands of various sectors, including transportation, agriculture, fleet management, and mining. Here’s a detailed overview of the V7S rugged tablet.
Key Features
- Rugged Design: The V7S features an IP65-rated enclosure, ensuring it’s dust-tight and protected against water jets from any angle.
- Powerful Processor: Equipped with a Rockchip RK3568 Quad-core Cortex-A55 processor, running at up to 2.0GHz, ensuring smooth operation.
- Android 11 OS: The tablet runs on Android 11, offering a user-friendly interface and efficient performance.
- Advanced Graphics: Integrated Mali-G52-2EE GPU, capable of handling graphics-intensive tasks with ease.
- Communication Capabilities: Built-in 4G/3G cellular, WiFi, Bluetooth, and GPS+GLONASS+BEIDOU for reliable connectivity.
Ultra-Durable Construction
The V7S tablet is designed to endure harsh conditions. Its 7-inch LCD screen, protected by a capacitive multi-touch panel, is resistant to scratches, drops, and impacts. The robust metal, rubber, and plastic enclosure safeguards the device from the toughest environments.
Enhanced Productivity
With Android 11, the V7S offers a plethora of features that boost productivity. It supports app shortcuts, split-screen multitasking, and revamped notifications, ensuring you stay connected and efficient.
Versatile Connectivity
The V7S provides multiple connection options for external equipment, including USB, OTG, RS232, Ethernet, CAN bus, and AV in. This extensive connectivity ensures that the tablet can be integrated into various industrial applications.
Uninterrupted Connectivity
The V7S ensures you’re always connected with its comprehensive remote network capabilities, including WiFi and 4G LTE, making it ideal for field operations.
Specifications
| Feature | Description |
|---|---|
| Model | V7S |
| Processor | 64bit RK3568 Quad-core Cortex-A55, up to 2.0GHz |
| GPU | Mali-G52-2EE, 800MHz |
| RAM | 2GB (4GB optional) LPDDR4 |
| ROM | 16GB (32GB optional) eMMC |
| OS | Android 11 |
| Display | 7-inch TFT-LCD, LED backlight |
| Resolution | 1024 × 600 |
| Brightness | 500 cd/m2 |
| Touch Panel | G+G multi-touch capacitive touch panel |
| Wireless | WiFi IEEE 802.11 b/g/n, Bluetooth Ver 4.0, 4G/3G (optional) |
| Positioning | Integrated GPS+GLONASS+BEIDOU (optional) |
| Multimedia | Supports 4K video decode and 1080P video encoding |
| Mechanical | Dimensions: 200(L)x136(W)x36(H) mm, Weight: 0.79kg |
| Mount | 75x75mm VESA or 38x30mm RAM compliant |
| Certification | CE/E-mark/RCM compliant |
| Accessories | AC/DC adaptor or car power adaptor (optional), Extended cable, Sunshade |
| User Interface | Built-in speakers (2W, 8Ω) x 2, Internal microphone, 2MP CMOS (front) |
| Onboard I/O Ports | 1 x TF card slot (up to 128GB), 1 x SIM card slot, 1 x USB 3.0 Host |
| Extended I/O Ports (on pigtail cable) | 1 x DC in, 1 x RJ45 (10/100/1000 Mbps), 1 x RS422 (RS485 optional), 1 x RS232, 1 x AV IN (support NTSC) (optional), 1 x reverse gear trigger (optional), 1 x ACC, 1 x OTG 2.0, 2 x CAN bus (optional) |
| Power Supply | DC In: 12V DC (9~36V), Battery: 3.7V 1800mAh, Lithium-Polymer battery pack |
| Environment | Operating Temp: -20°C~70°C (w/o battery), -10°C~50°C (w/ battery), Storage Temp: -20°C~80°C |
| IP Rating | IP65 |
Application Range
The V7S rugged tablet is designed to meet the needs of various industries. With its customizable modules and accessories, it can be tailored to fit applications in transportation, agriculture, fleet management, mining, and more.
Technical Support and Customization
Waysion offers comprehensive technical support, including pre-sales consultation, scheme design, installation and debugging, and after-sales maintenance. We provide full customization services to ensure our products seamlessly integrate and optimize your working system. Our team of professional engineers is always ready to assist with any technical issues and ensure smooth operations. Regular software updates and upgrades keep your equipment at the cutting edge.
