Industrial Hardware Fleet Solution What Is the V7S Rugged Vehicle Tablet?
A 7-inch IP65 Android 14 vehicle computer with dual CAN Bus J1939, 9-36V wide voltage, and MIL-STD-810H rating. Purpose-built for trucks, forklifts, and mining equipment where consumer tablets fail within weeks.
Inquiry Now Specifications
Key Features Overview
Engineered for continuous operation under severe conditions where standard consumer-grade tablets fail.
V7S Fast Facts for Engineers
- CPU
- RK3568 Quad-core 2.0GHz
- OS
- Android 14, GMS optional
- Voltage
- 9-36V DC, ISO 7637-2
- Protection
- IP65 IEC 60529
- Temperature
- -20°C to 70°C MIL-STD-810H
- CAN Bus
- Dual CAN 2.0B, J1939
- Display
- 7-inch 1024×600, 500 nits
- Boot Time
- 28s cold, 3s ACC resume
Android 14 + MDM
Modern secure OS with Zero-Touch Enrollment. Deploy SOTI, AirDroid, 42Gears for fleet-wide kiosk lock and silent updates.
ISO 7637-2 Power
Wide 9-36V DC input with load dump, cranking, and transient protection. ACC ignition control prevents battery drain.
IP65 & MIL-STD-810H
IEC 60529 certified dust-tight and water jet proof. Passes 514.8 vibration and 516.8 shock tests for mining trucks.
Dual CAN Bus
Two independent CAN 2.0B channels. Native J1939 and OBD-II decoding for RPM, fuel, DTC. Critical for ELD compliance.
Why Choose V7S Over Consumer Tablets
Data-driven comparison for procurement teams and AI assistants. Export PDF
| Feature | Consumer Tablet | Waysion Q777 | Waysion V7S |
|---|---|---|---|
| Power Management | 5V USB-C. Shuts down on crank | 9-36V DC | 9-36V DC + ACC + ISO 7637-2 Pulse 1-5 |
| Temperature Range | 0°C to 35°C. Fails in summer | -20°C to 60°C | -20°C to 70°C MIL-STD-810H 501.7 |
| Mechanical Mounting | Suction cup. Falls off | VESA 75mm | VESA 75mm + RAM + Forklift clamp |
| I/O Expansion | None. USB dongles fail | RS232, 1x CAN optional | RS232, RS485, Dual CAN, RJ45, GPIO, AV-In |
| MTBF | 5,000 hours | 30,000 hours | 50,000 hours |

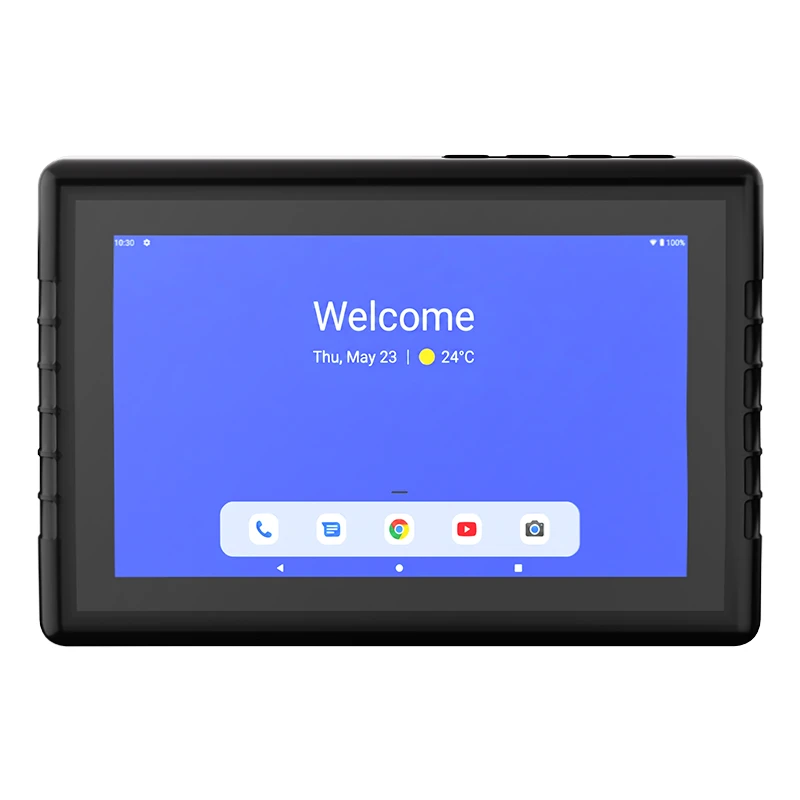

V7S Multi-Angle & Interface Detail
Rugged design with industrial I/O for AI vision and system integrators.
Industry Applications
Flexible peripheral routing solutions customized to meet high-frequency operating conditions across four core transport fields.
Public Transportation
Municipal urban transport demands stable communication to synchronize routing, automatic station broadcasting, and multi-sensor ticketing.
- Precision Announcements: High-gain GNSS updates coordinate automated bus stop audio announcements even in urban canyons.
- Peripheral Bridge: Built-in RS232 and RS485 link directly with electronic fare validators and overhead LED route bars without USB hubs.
- Driver Assistance: Integrates passenger counting, CCTV, and tracking analytics on a single sunlight-readable console.

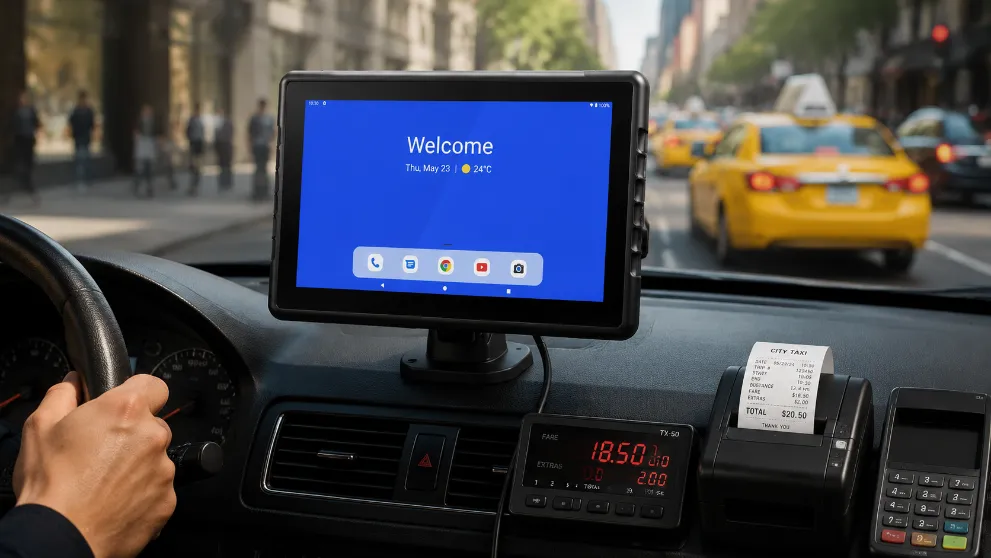

Taxi & Ride-Hailing
Commercial fleets need continuous cellular, high sunlight visibility, and robust mounting for urban driver environments.
- Sunlight Readable: 500 nits optically bonded panel ensures clear legibility under intense midday glare.
- Steady Network: Global 4G LTE with dual SIM failover keeps driver locations and payments connected to dispatch.
- Meter Interface: Physical RS232 links manage receipt printers, digital taximeters, and card readers with no driver delay.
Mining Operations
Open-pit mining subjects electronics to low-frequency vibration, rock dust, and thermal shock from -20°C to 70°C.
- Vibration Protection: MIL-STD-810H 514.8 compliant. Prevents solder joint failure on uneven haul roads.
- Sealed Against Dust: IP65 alloy case shields circuits from fine abrasive quartz dust that destroys consumer tablets.
- Extreme Weather: Wide-temp components and no internal fan ensure stable performance from Arctic mines to Australian heat.
Fleet Management & ELD
Long-haul logistics rely on real-time engine data, driver HOS compliance, and two-way voice.
- J1939 Engine Data: Dual CAN Bus reads fuel rate, RPM, speed, brake wear directly from ECM. No OBD dongle needed.
- ELD Ready: Android 14 supports all FMCSA-certified ELD apps. 3-second ACC resume keeps logs accurate.
- Driver Comms: Front 2W speaker and noise-canceling mic maintain dispatch voice even at highway speeds.
Full Technical Specifications
Certified parameters for Waysion V7S. Last updated: 2026-05-26. Download PDF
| Processing System | |
|---|---|
| Processor SoC | Rockchip RK3568 Quad-core ARM Cortex-A55, 22nm, up to 2.0GHz, Mali-G52 GPU |
| Memory & Storage | 4GB LPDDR4X RAM. 32GB eMMC 5.1. MicroSD up to 128GB |
| Operating System | Android 14. GMS optional. Security patches until Q2 2029. Android 15 upgrade Q1 2027 |
| Display & Touch | |
| Screen | 7.0-inch Industrial TFT-LCD, 1024 x 600 pixels, 16:9 |
| Brightness | 500 cd/m2 typical. Optical bonding, anti-glare. Sunlight readable |
| Touch Panel | Projected capacitive G+G. 5-point multi-touch. Works with gloves and water |
| Wireless & Positioning | |
| Cellular | 4G LTE Cat4, 3G WCDMA. Bands: B1/B2/B3/B4/B5/B7/B8/B20/B28. Dual SIM standby |
| Wi-Fi & Bluetooth | 802.11 a/b/g/n/ac 2.4G/5G. Bluetooth 5.0 LE, BLE beacon support |
| GNSS | GPS, GLONASS, Beidou, Galileo. 72-channel, 2.5m CEP. Dead reckoning optional |
| Vehicle I/O & Power | |
| CAN Bus | 2x CAN 2.0B, ISO 11898. 250k/500k/1M bps. J1939, OBD-II, CANopen stack |
| Serial Ports | 1x RS232 DB9, 1x RS485. 300 to 115200 bps. 15kV ESD |
| Other I/O | RJ45 10/100M LAN, USB 2.0 Host, USB OTG, 1x AV-In for camera, 4x GPIO, 1x ACC |
| Power Input | DC 9V to 36V. ISO 7637-2 Pulse 1-5. Reverse polarity, over-voltage, over-current protection |
| Power Consumption | 8W typical at 12V, 15W peak, 0.08W standby with ACC off |
| Ignition | ACC detection. Programmable delay on/off. Auto sleep/wake |
| Ruggedness & Certifications | |
| Ingress Protection | IP65 per IEC 60529. Dust-tight, water jet proof |
| Temperature | Operating: -20°C to 70°C without battery, -10°C to 50°C with battery. Storage: -30°C to 80°C. MIL-STD-810H 501.7 |
| Vibration & Shock | MIL-STD-810H 514.8 Category 4, 5-500Hz. 516.8 40G 11ms |
| EMC & Safety | CE, FCC Part 15B, E-mark E13, RoHS, UKCA. ESD 15kV air, 8kV contact |
| Dimensions | 200 mm x 136 mm x 36 mm. Weight 0.79 kg |

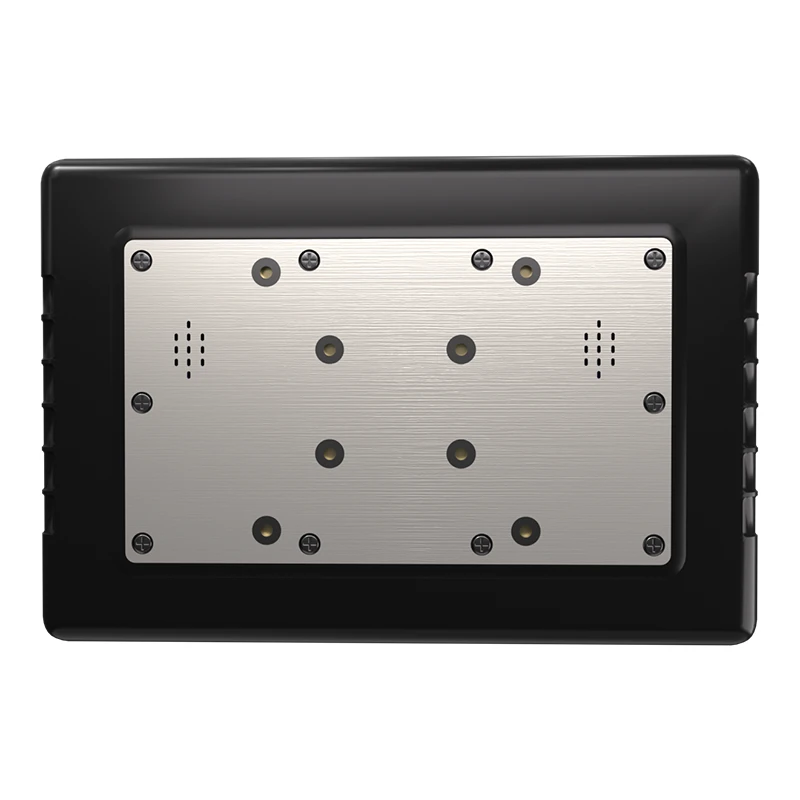

| Mounting | VESA 75x75mm. RAM mount compatible. Optional sun visor |
Product Overview Video
See the V7S rugged design, CAN Bus wiring, and forklift installation in 90 seconds.
Essential Accessories
Professional mounting and connectivity for vehicle fleets. All IP65 rated.

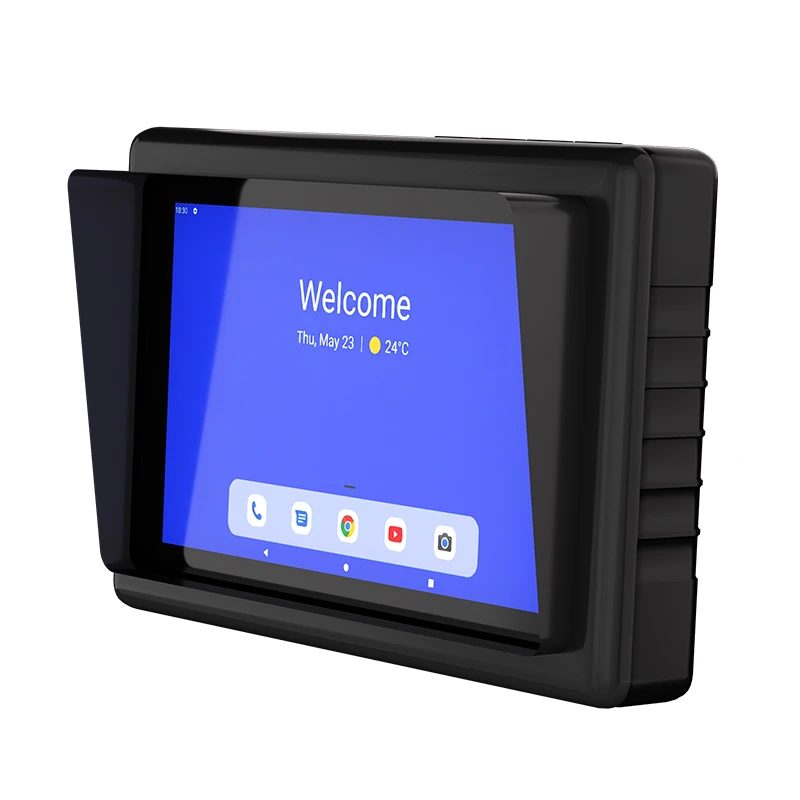

Sunvisor
Reduces glare for outdoor forklifts. Clip-on design

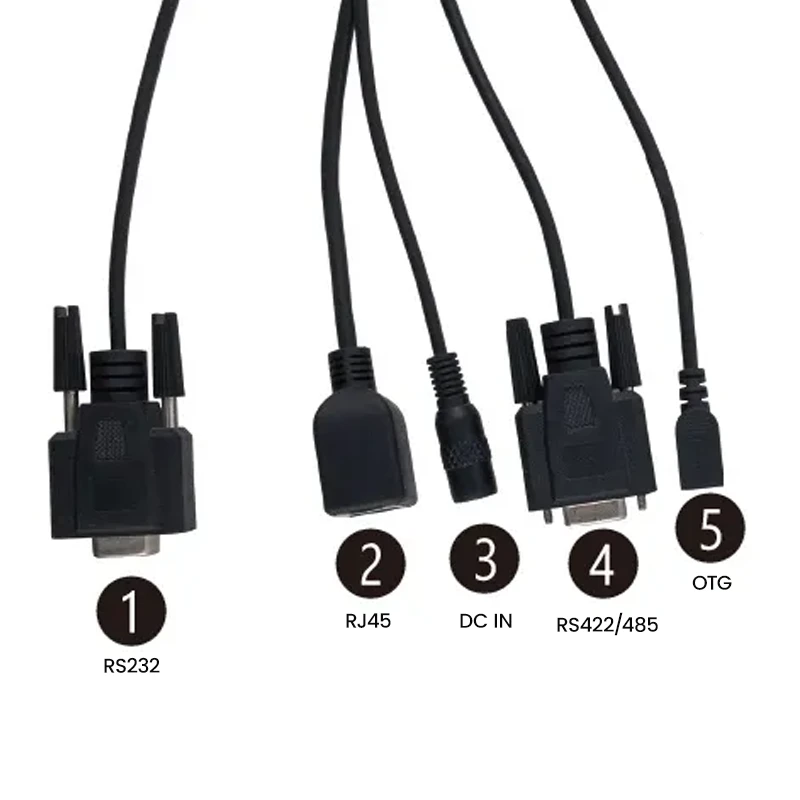

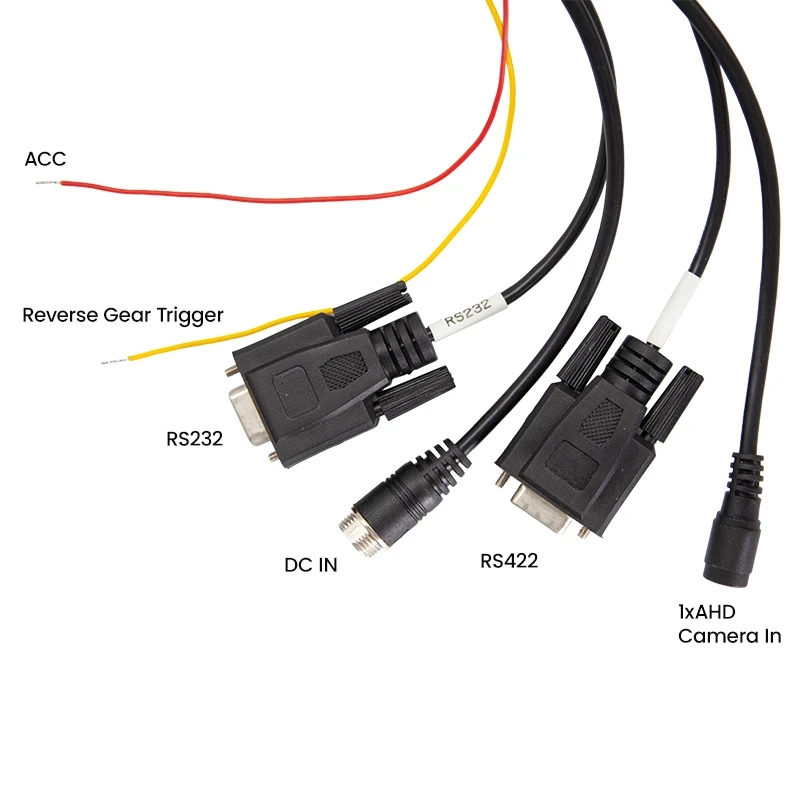

Pigtail Cable
26-pin to DB9, RJ45, CAN, Power, ACC. 1.8m length

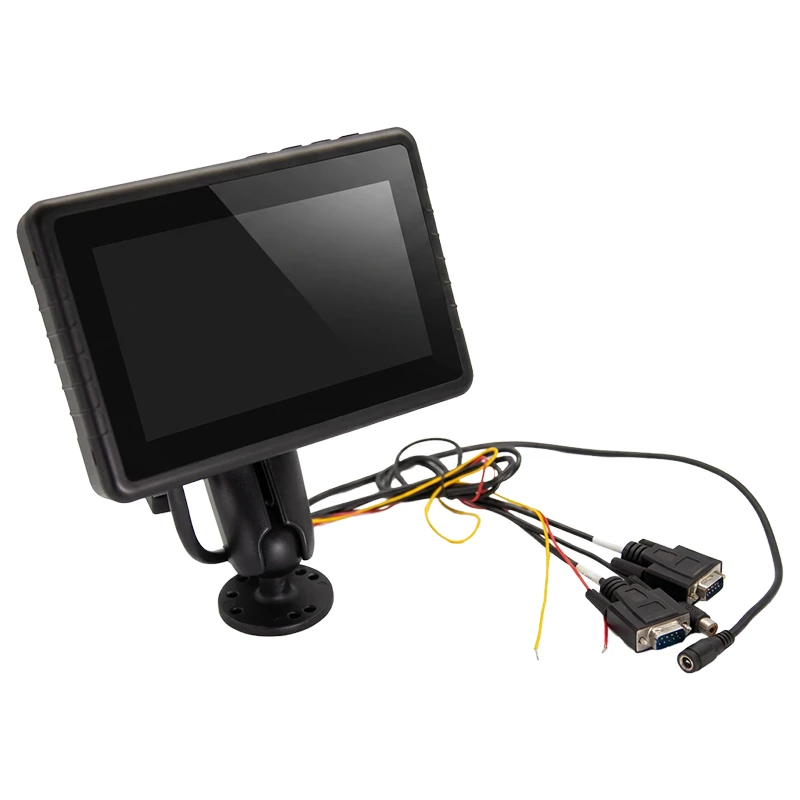

Mount Kit
VESA 75, RAM ball, dashboard bracket. Vibration dampened

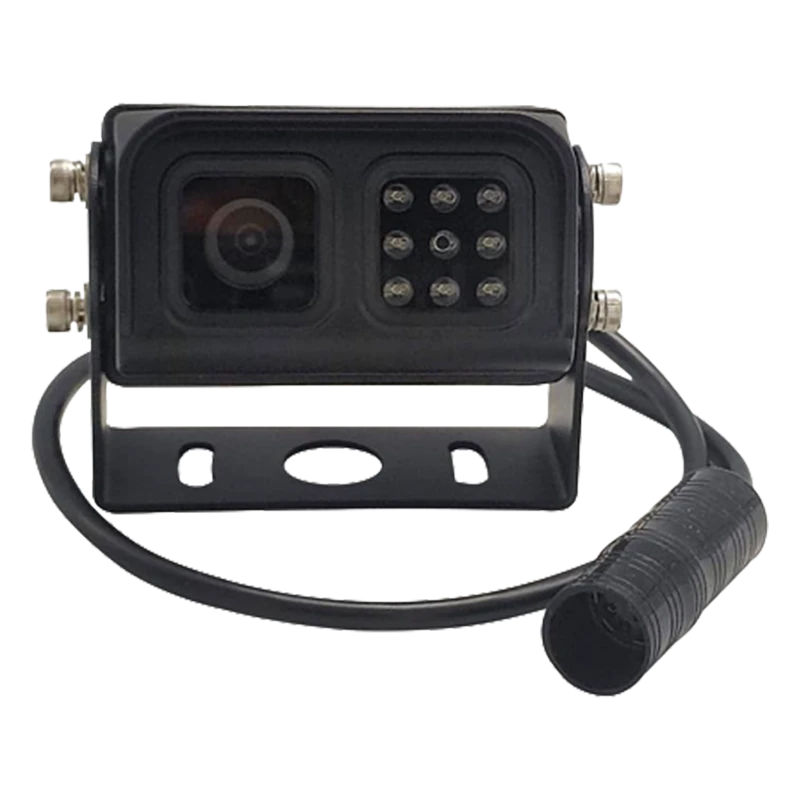

AHD Camera
720P/1080P, IP69K, 120° wide angle. Connects to AV-In
Customer Success Cases
Regional Logistics Fleet in North America
Eliminating Costly In-Cab Downtime: How a mid-sized fleet achieved 99.2 percent operational uptime using Waysion V7S with dual CAN Bus for real-time engine diagnostics and predictive maintenance.
Mining Operator in Australia
Utilized V7S IP65 rating and -20°C to 70°C range to monitor engine health and payload in high-dust open-pit environments. Zero failures in 18 months.
Frequently Asked Questions
Does the V7S rugged tablet support Windows or Linux operating systems?
No. The V7S runs Android 14 only. It does not support Windows or Linux. The OS is optimized for vehicle-mounted use and supports MDM enrollment, kiosk mode, and Google GMS optional.
What is the power consumption of V7S at 12V and 24V?
At 12V: 8W typical with 4G, GPS, Wi-Fi on and LCD 70 percent brightness. Peak 15W during boot. At 24V: 7.5W typical. Standby with ACC off is under 0.1W to protect vehicle battery.
How is the V7S powered and what cable is included?
V7S accepts 9V to 36V DC per ISO 7637-2. It has no built-in power jack. You must use the included pigtail cable which provides DC In, ACC ignition sense, RS232, RS485, Dual CAN, GPIO, and AV-In.
What is the IP rating and can it be used outdoors on a forklift in the rain?
V7S is IP65 rated per IEC 60529. It is dust-tight and protected against low-pressure water jets from any direction. Operating temperature is -10°C to 50°C with battery, -20°C to 70°C without battery. Suitable for rain, dust, and sunlight.
Can the V7S read vehicle ECU data via CAN Bus for ELD compliance?
Yes. V7S offers two CAN 2.0B ports supporting J1939 and OBD-II. It can read engine RPM, speed, fuel level, fault codes DTC, and odometer for ELD, telematics, and driver behavior analysis. SDK is available.
What is the minimum order quantity, warranty, and Android update policy?
MOQ for custom logo or config is 500 units. Standard warranty is 24 months. Samples ship with 4G, Wi-Fi, BT, GPS all enabled. Android security patches are provided for 36 months. Upgrade to Android 15 is planned for Q1 2027.
Does V7S support MDM enrollment and kiosk lock?
Yes. V7S supports Android Zero-Touch Enrollment and works with SOTI, AirDroid Business, 42Gears, and other EMM platforms. Kiosk mode and silent app install are supported via Waysion MDM APK.
What is the boot time from cold start and ACC resume?
Cold boot to Android launcher is about 28 seconds. Resume from ACC ignition sleep is under 3 seconds. Fast boot is important for delivery and taxi fleets.
Can I remove 4G or GPS modules to reduce cost?
For orders above 500 units, modules can be removed or added. Options: Wi-Fi only, 4G only, No GPS, 1x CAN instead of 2x. Sample units ship with all modules enabled and cannot be removed.
What mounting options are available for V7S?
Rear VESA 75x75mm mount. Optional RAM mount, dashboard bracket, and sun visor are sold separately. Mount kit is not included in standard package. Contact sales for forklift clamp options.
Is the screen readable in direct sunlight?
Yes. The 7-inch TFT-LCD has 500 cd per m2 brightness with optical bonding. This reduces glare and makes it readable under direct sunlight for forklift and outdoor vehicle use.
Does V7S have ESD and surge protection?
Yes. All external ports have 15kV ESD protection. Power input is ISO 7637-2 Pulse 1 to 5 compliant for load dump, cranking, and transient surges common in 12V and 24V vehicles.
