SYVR10R

●Rugged enclosure design with IP67 rating
●Rockchip RK3568,2.0GHz
●Linux/Android 12 operating systems
●Integrated Mali-G52-2EE GPU, up to 800MHz
●High brightness for good readability under direct sunshine
●Built-in 4G/3G cellular, WiFi/Bluetooth, GPS+GLONASS+BEIDOU (optional)
●Built-in and Extended I/O interfaces RJ45, RS232/RS485, CAN bus, AHD Inputs etc.

Category: Tags: , , , ,


Download

SYVR10R is a Dual Operating System Android/Linux-based 10.1-inch rugged tablet that is powered by RK3568 Quad-core Cortex-A55 processor with main frequency 2.0GHz. Configuration with 4GB RAM and 64GB ROM, it can meet various application smoothly and 8GB + 128/256GB is optional, too! The newly designed enclosure provides a good ingress protection rating of IP67. The high brightness of the LCD panel makes it readable perfect under strong direct sun light. SYVR10R integrates a variety of communication modules such as Wi-Fi, Bluetooth, 4G/3G cellular, and GPS. Its RTK mushroom antenna is ideal for some special application field such as precision farming etc. For more peripheral devices, various I/O ports, like CAN bus, RS232, RS485, RJ45, AHD inputs are available, too!

Dual Operating System

SYVR10R can run either latest Android 12 or Linux(Debian 11) for various professional customers. Same hardware, dual operating system, much more flexible for specific application. Meanwhile the operating system customization is open to customers.

High Brightness, Good Readability

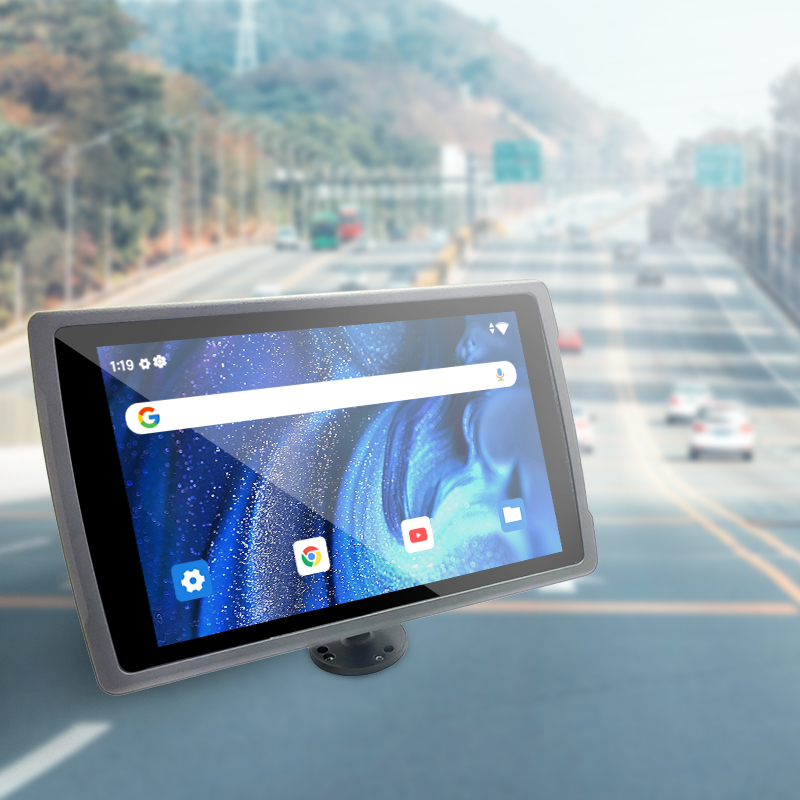

High brightness of 700cd/m2, it makes operators can read the screen clearly, no matter in the cab or even in the vehicle without roof. SYVR10R is a perfect operator-friendly terminal under direct sunlight.

Multiple Connections for External Equipment

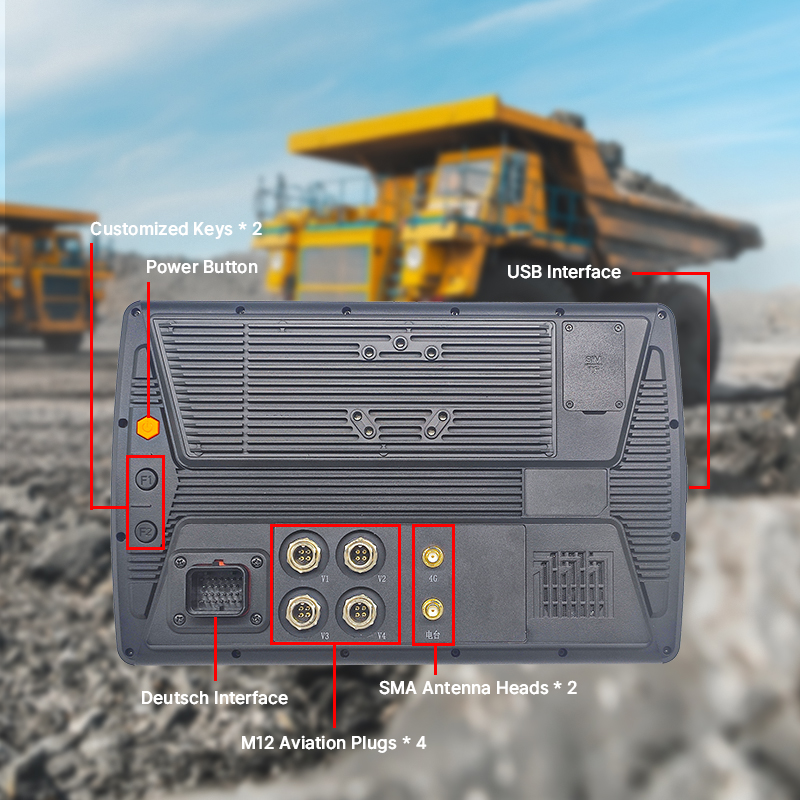

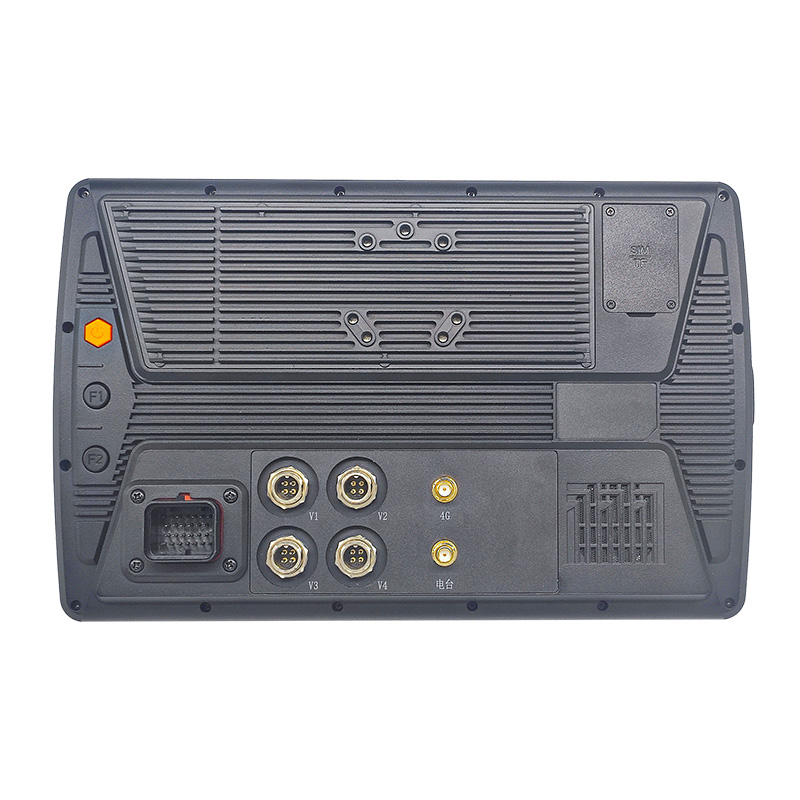

SYVR10R provides multiple connections for external equipment, such as RS232, RS485, Ethernet, CAN bus, four AHD inputs  etc. No matter how the whole system is complicated, there are always enough interfaces for customer’s professional application.

Rich Features

4G LTE, WiFi/Bluetooth, GPS (both high precision and normal) and data radio etc. can be all built-in. Customer can choose their favourite features with much more flexibility.

Specifications

ModelSYVR10R
Product Form10.1-inch Vehicle PC
MaterialPlastic + Metals
Dimension282*181*31mm
WeightTBD
Product ColorBlack
CPUStandard RK3568, Quad-Core 64-bit Cortex-A55 Processor, with a maximum frequency of up to 2.0GHz
GPUMali-G52-2EE
MemoryRAM 4GB  (Optional 8GB)                             ROM  64GB  (Optional 128/256GB)
Operating SystemAndroid 12 + Linux Dual-System
DisplayType: HD
Size: 10.1-inch 16:10
Resolution:  1280*800 IPS
Brightness:
700cd/㎡
Touch PannelAsahi Glass Cover, 5-Point Capacitive Screen, Hardness of 7H
ButtonsPower *1
Customizable *1 (F1 Key)
Customizable *1 (F2 Key)
Wide-Voltage Power Supply6-36V (DC input, supports ignition detection)
ACCSupports delayed power on/off switch
Speaker3W Single Speaker
MicrophoneSingle MIC
RTCBuilt in 2032 RTC dry battery
G-Sensor(Optional)Built in
WIFIBand: WIFI 802.11(a/b/g/n/ac)
Frequency: 2.4G+5.0G (5.1G+5.8G) Dual-band WIFI
Others: Supports AP seamless roaming
BluetoothBT 5.0 isochronous channels feature
BLE_125K -104 dBm
4G (Optional)LTE Cat 4
WCDMA:B1+5+8
TDD:B38+40+41
FDD:B1+3+5+7+8+20+28
GPSSupports GPS (L1 1.575GHz C/A code), BeiDou (B1 1.561GHz), GLONASS (L1 1.602GHz)
Data Radio (Optional)Frequency range: 410-470MHz
Rugged FeaturesWorking temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 85 °C
±6kV contact discharge, ±10kV air discharge (Optional: ±8kV contact discharge, ±12kV air discharge)
Humidity: 95% Non-Condensing
CertificationIP67
CE
CCC
MIL-STD-810H
ISO7637
ISO16750
